Start with four integers and one forced reflection

Take two real diagonal coordinates and one complex strict-upper coordinate:

\[ d_0=2, \qquad d_1=-1, \qquad u_{01}=1+2i. \]

The subscripts record destinations. The number \(d_0\) goes in row 0, column 0; \(d_1\) goes in row 1, column 1; and \(u_{01}\) goes in row 0, column 1. The remaining cell is not a fourth matrix-entry choice. It is forced to be the complex conjugate \(\overline{u_{01}}=1-2i\):

\[ H= \begin{bmatrix} 2 & 1+2i\\ 1-2i & -1 \end{bmatrix}. \]

Check the defining symmetry entry by entry. The diagonal values are real, and the off-diagonal pair obeys

\[ H_{10}=1-2i=\overline{1+2i}=\overline{H_{01}}. \]

Therefore the conjugate transpose of \(H\) is \(H\) itself. The four real numbers

\[ q=(d_0,d_1,\operatorname{Re}u_{01},\operatorname{Im}u_{01}) =(2,-1,1,2) \]

are enough to reconstruct all four complex matrix positions. This tuple \(q\) is the running example for the whole chapter.

Now copy the upper entry into the lower slot without changing the sign of its imaginary part:

\[ M= \begin{bmatrix} 2 & 1+2i\\ 1+2i & -1 \end{bmatrix}. \]

This near-miss is not Hermitian because \(M_{10}=1+2i\ne1-2i=\overline{M_{01}}\). Reflection alone is not enough; reflection and complex conjugation are the rule.

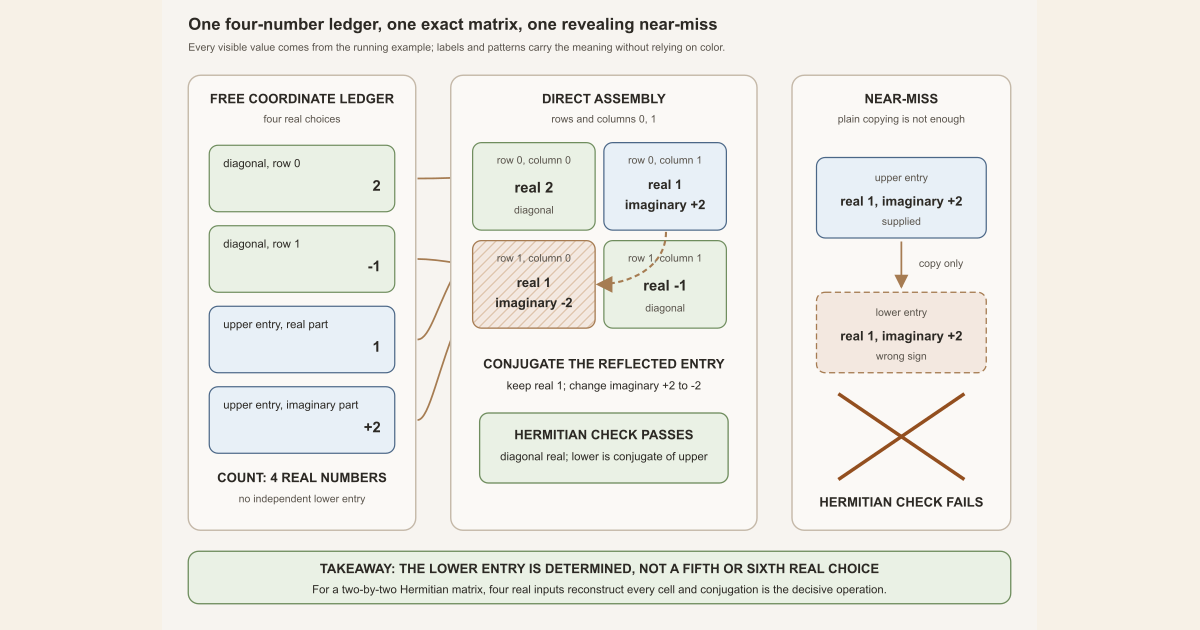

Four real inputs, two diagonal values and the real and imaginary parts of one upper entry, reconstruct the matrix with rows two comma one plus two i and one minus two i comma minus one. A near-miss copies plus two as the lower imaginary part instead of changing it to minus two.
FigureFinding: the coordinate ledger \((2,-1,1,2)\) supplies exactly four real choices. Assembly places 2 and -1 on the diagonal, places real part 1 and imaginary part +2 above the diagonal, and forces real part 1 and imaginary part -2 below it. The near-miss keeps +2 below the diagonal and therefore fails conjugate symmetry. These are exact toy values, not sampled data or an ensemble normalization.

A finite complex Hermitian matrix satisfies the compact equation \(H^*=H\). The example shows what that equation means operationally: diagonal entries are real, strict-upper entries are free, and strict-lower entries are determined. This chapter turns that geometry into a deterministic program, then separates what the checked Lean module proves from later dimension, Euclidean-geometry, probability, and spectral layers.

No probability measure enters this construction. No coordinate is declared Gaussian or independent. No Gaussian unitary ensemble (GUE) normalization, matrix law, unitary invariance, spectral statistic, or asymptotic theorem is selected. The chapter builds the deterministic bridge that those later layers may use.

Choose a route up

RouteBegin withDestination
First encounterThe symmetry constraint removes redundant dataRead a Hermitian matrix as free coordinates plus reflection
Dimension routeCount the real degrees of freedomDerive the \(n^2\) real-coordinate count
Construction routeInsert coordinates directlyUnderstand the diagonal, upper, and lower branches
Geometry routeReflection changes the coordinate metricCompute norms and an inner product from the same raw ledger
Proof routeHermiticity is a three-case proofFollow the exact entrywise argument used in Lean
Measurability routeMeasurability reduces to scalar coordinatesSee why no measure or law is required
Hands-on Lean routeType the running example yourselfRun a bounded Std worksheet on Mac or Linux
Project Lean routeThe checked declaration mapAudit all 17 public declarations with the pinned project dependencies
Boundary routeDimension zero is not an exceptionUnderstand the unique empty coordinate point and matrix

Learning objectives

By the summit, you should be able to:

  1. identify the real diagonal and complex strict upper triangle as the free coordinates of a finite Hermitian matrix;
  2. derive the \(n^2\) real-degree-of-freedom count;
  3. explain why the lower triangle is determined rather than independently supplied;
  4. evaluate the direct assembly map in all three index-order cases;
  5. show why an \(X+X^*\) implementation doubles a supplied real diagonal;
  6. compute the running matrix’s Frobenius square and its inner product with a second matrix from the raw coordinate ledger;
  7. explain why raw upper coordinates receive weight two in matrix geometry;
  8. prove Hermiticity entry by entry using order trichotomy;
  9. reduce matrix-valued measurability to scalar coordinate maps;
  10. distinguish assembly from a bundled measurable Hermitian random matrix;
  11. run the bounded Std reconstruction and near-miss worksheet;
  12. explain the zero-dimensional coordinate and matrix spaces; and
  13. separate the 17 checked Lean declarations from unproved dimension, inverse, probability, and spectral statements.

The assembly program in one picture

Comparing a row and column sends an entry to one of three branches: copy a strict-upper complex coordinate, insert a real diagonal coordinate, or conjugate the reflected upper coordinate; all branches join at a Hermitian matrix.
FigureFinding: the assembly map is a total three-branch program. Above the diagonal it copies a supplied complex coordinate. On the diagonal it inserts a supplied real coordinate. Below the diagonal it conjugates the reflected upper coordinate. The branches are selected only by finite-index order and introduce no probability law or scale.

Base camp: the symmetry constraint removes redundant data

For a complex matrix \(H\), the conjugate transpose is defined by

\[ (H^*)_{ij}=\overline{H_{ji}}. \]

The matrix is Hermitian when \(H^*=H\). Entrywise, this is

\[ \overline{H_{ji}}=H_{ij} \qquad\text{for every }i,j. \]

Set \(i=j\). Then \(H_{ii}=\overline{H_{ii}}\), which means that the diagonal entry is real. Now take \(i\ne j\). Choosing \(H_{ij}\) determines \(H_{ji}=\overline{H_{ij}}\). The two reflected off-diagonal slots carry one complex coordinate together, not two unrelated complex coordinates.

This distinction matters before probability appears. Independently supplied nondegenerate upper and lower variables cannot also satisfy the deterministic Hermitian reflection constraint. A Hermitian construction identifies each lower entry with the conjugate of its upper partner, so the pair is generally dependent. The safest representation records only the primitive positions and performs reflection deterministically. Degenerate constant coordinates can make independence and a deterministic relation coexist, but they do not justify treating both slots as separate free data.

For size \(n\), let

\[ I_n^{\lt}=\{(i,j):0\le i\lt n,\ 0\le j\lt n,\ i\lt j\} \]

be the strict-upper positions. A coordinate point is a pair

\[ (d,u) \in (\operatorname{Fin}(n)\to\mathbb R) \times (I_n^{\lt}\to\mathbb C). \]

Here \(d_i\) is intended for the \(i\)-th diagonal slot, and \(u_{ij}\) is intended for the strict-upper slot \((i,j)\). The lower triangle is absent from the input type because Hermiticity already determines it.

Camp one: count the real degrees of freedom

The coordinate representation exposes the real dimension of the Hermitian space. The diagonal contributes \(n\) real coordinates. The number of strict-upper positions is

\[ \lvert I_n^{\lt}\rvert =\binom n2 =\frac{n(n-1)}2. \]

Every strict-upper coordinate is complex, so it contributes two real coordinates. Therefore

\[ \begin{aligned} n+2\lvert I_n^{\lt}\rvert &=n+2\binom n2\\ &=n+n(n-1)\\ &=n^2. \end{aligned} \]

This is the real dimension of the vector space of \(n\times n\) complex Hermitian matrices.

For \(n=1\), there is one real diagonal value and no strict-upper position. For \(n=2\), there are two real diagonal values and one complex upper value:

\[ H= \begin{bmatrix} d_0 & u_{01}\\ \overline{u_{01}} & d_1 \end{bmatrix}. \]

The running ledger \(q=(2,-1,1,2)\) is exactly this case. Its first two numbers are the real diagonal; its last two are the real and imaginary parts of the one complex upper value. Thus it has

\[ 2+2\binom22=2+2=4=2^2 \]

real coordinates. The lower-left matrix cell consumes no new degree of freedom. For \(n=3\), three real diagonal coordinates and three complex upper coordinates give \(3+2\cdot3=9=3^2\).

These counts are mathematical context. The RMT-05 Lean module does not define a basis, prove the cardinality formula for StrictUpperIndex, or package a real-linear equivalence. Its checked interface defines the coordinate type and proves direct assembly, entry formulas, Hermiticity, and measurability.

Camp two: make the strict upper triangle a type

Lean’s finite index type Fin n contains natural numbers smaller than \(n\), together with the proof of that bound. The project defines

def StrictUpperIndex (n : ℕ) :=
  {ij : Fin n × Fin n // ij.1 < ij.2}

This is a subtype. A value contains a pair \((i,j)\) and evidence that \(i\lt j\). Thus a function

u : StrictUpperIndex n → ℂ

can only be evaluated at a genuine strict-upper position. There is no need to assign dummy values on or below the diagonal and later prove they are ignored.

The module supplies three instances:

  • StrictUpperIndex.instFintype proves the index type is finite;
  • StrictUpperIndex.instDecidableEq decides equality of two strict-upper positions; and
  • StrictUpperIndex.instIsEmptyZero records that no such position exists when \(n=0\).

The full coordinate type is deliberately simple:

abbrev HermitianCoordinateSpace (n : ℕ) :=
  (Fin n → ℝ) × (StrictUpperIndex n → ℂ)

It is an abbreviation for a product of function spaces. It does not carry proof fields, a measure, or a normalization ledger.

In Lean: the input type records only free entries

One idea, three languages Read across, then read the syntax map
A human says
A size-n coordinate point is a real number for every diagonal position together with a complex number for every strict-upper position.
On paper
\((d,u)\in(\operatorname{Fin}(n)\to\mathbb R)\times(I_n^{\lt}\to\mathbb C)\).
In Lean
(Fin n → ℝ) × (StrictUpperIndex n → ℂ)
Syntax map
  • Fin n is the type of row or column indices from zero through \(n-1\), with the bound carried in the value.
  • → is a function type. Thus Fin n → ℝ assigns one real number to each diagonal position.
  • StrictUpperIndex n contains pairs together with a proof that the row is strictly smaller than the column.
  • × is a product type. A coordinate point contains both families.
  • There is no strict-lower factor. Its omission is the type-level expression of conjugate reflection.

Camp three: insert coordinates directly

For a real diagonal \(d\) and a complex strict upper triangle \(u\), define \(H=\operatorname{assemble}(d,u)\) by

\[ H_{ij}= \begin{cases} u_{ij}, & i\lt j,\\ \overline{u_{ji}}, & j\lt i,\\ d_i, & i=j. \end{cases} \]

Lean implements the same rule:

def hermitianFromCoordinates {n : ℕ} (d : Fin n → ℝ)
    (u : StrictUpperIndex n → ℂ) : Matrix (Fin n) (Fin n) ℂ :=
  fun i j ↦
    if hij : i < j then
      u ⟨(i, j), hij⟩
    else if hji : j < i then
      star (u ⟨(j, i), hji⟩)
    else
      d i

The first branch builds a subtype value from \((i,j)\) and the proof hij. The second uses the reflected pair \((j,i)\) and applies star, which is complex conjugation here. If neither strict inequality holds, order forces \(i=j\), so the last branch inserts \(d_i\), coerced from \(\mathbb R\) into \(\mathbb C\).

Three simplification theorems expose the behavior:

\[ \begin{aligned} \operatorname{assemble}(d,u)_{ii} &=d_i,\\ \operatorname{assemble}(d,u)_{ij} &=u_{ij} &&\text{when }i\lt j,\\ \operatorname{assemble}(d,u)_{ij} &=\overline{u_{ji}} &&\text{when }j\lt i. \end{aligned} \]

Their Lean names are hermitianFromCoordinates_apply_diag, hermitianFromCoordinates_apply_upper, and hermitianFromCoordinates_apply_lower.

Reconstruct the running matrix one branch at a time

For \(q=(2,-1,1,2)\), the diagonal function returns \(d_0=2\) and \(d_1=-1\). The strict-upper function has one input, the pair \((0,1)\), and returns \(u_{01}=1+2i\). The three branches now give

\[ \begin{aligned} H_{00}&=d_0=2,\\ H_{01}&=u_{01}=1+2i,\\ H_{10}&=\overline{u_{01}}=1-2i,\\ H_{11}&=d_1=-1. \end{aligned} \]

Reading those four results by rows reconstructs the opening matrix exactly. Nothing is sampled, averaged, or scaled during this computation.

In Lean: a lower entry is the conjugate of a proved upper position

One idea, three languages Read across, then read the syntax map
A human says
When column j comes before row i, the assembled entry at row i, column j is the conjugate of the supplied entry at the reflected strict-upper position.
On paper
\(j\lt i\Longrightarrow H_{ij}=\overline{u_{ji}}\).
In Lean
RandomMatrix.hermitianFromCoordinates d u i j = star (u ⟨(j, i), hji⟩)
Syntax map
  • hji : j < i is evidence that the reflected pair really lies in the strict upper triangle.
  • ⟨(j, i), hji⟩ packages the pair and its proof as one StrictUpperIndex n value.
  • u … retrieves the supplied complex coordinate.
  • star is complex conjugation in this type.
  • The exact project theorem is RandomMatrix.hermitianFromCoordinates_apply_lower; the displayed equation is its conclusion after the variables are instantiated.

Camp four: why \(X+X^*\) is the wrong insertion map

Given any square complex matrix \(X\), the matrix \(X+X^*\) is Hermitian. But a universal repair map and a coordinate insertion map have different jobs. Build an upper-triangular temporary matrix from the intended coordinates:

\[ X_{ij}= \begin{cases} u_{ij}, & i\lt j,\\ d_i, & i=j,\\ 0, & j\lt i. \end{cases} \]

Above the diagonal, \((X+X^*)_{ij}=u_{ij}\). On the diagonal,

\[ \begin{aligned} (X+X^*)_{ii} &=X_{ii}+\overline{X_{ii}}\\ &=d_i+d_i\\ &=2d_i. \end{aligned} \]

The diagonal is doubled. Using \((X+X^*)/2\) repairs the diagonal but turns the upper coordinate into \(u_{ij}/2\). Supplying \(d_i/2\) only on the temporary diagonal could compensate, but then a hidden scaling convention lives inside the constructor.

Direct assembly inserts \(d_i\), \(u_{ij}\), and \(\overline{u_{ij}}\) exactly where intended. Later probability code can scale primitive coordinates explicitly.

Geometry ridge: reflection changes the coordinate metric

The running ledger is a perfect encoding, but its ordinary unweighted dot product is not yet the Frobenius geometry of the assembled matrix. The reason is visible: one strict-upper complex coordinate occupies two matrix cells.

The squared Frobenius norm adds the squared magnitude of every entry. For the running matrix,

\[ \begin{aligned} \lVert H\rVert_F^2 &=|2|^2+|-1|^2+|1+2i|^2+|1-2i|^2\\ &=4+1+5+5\\ &=15. \end{aligned} \]

By contrast, the unweighted square of the four-number ledger is

\[ \lVert q\rVert_{\mathrm{raw}}^2 =2^2+(-1)^2+1^2+2^2 =10. \]

The missing \(5\) is the second matrix copy of the upper entry. If a raw coordinate is written \((d_0,d_1,a,b)\), the matrix-induced squared norm is

\[ \lVert(d_0,d_1,a,b)\rVert_{\mathrm{weighted}}^2 =d_0^2+d_1^2+2(a^2+b^2). \]

That weight also controls cross inner products. Compare \(H\) with the Hermitian matrix encoded by

\[ r=(1,3,-2,1), \qquad K= \begin{bmatrix} 1 & -2+i\\ -2-i & 3 \end{bmatrix}. \]

The real Frobenius inner product is the real part of the entrywise complex inner product:

\[ \langle H,K\rangle_{F,\mathbb R} =\operatorname{Re}\!\left( \sum_{i,j}\overline{H_{ij}}K_{ij} \right). \]

In raw coordinates it becomes

\[ \begin{aligned} \langle q,r\rangle_{\mathrm{weighted}} &=2\cdot1+(-1)\cdot3 +2\bigl(1\cdot(-2)+2\cdot1\bigr)\\ &=2-3+2(0)\\ &=-1. \end{aligned} \]

The same ledger gives \(\lVert K\rVert_F^2=1+9+2(4+1)=20\). Thus the three exact geometric outputs for this pair are

\[ \lVert H\rVert_F^2=15, \qquad \langle H,K\rangle_{F,\mathbb R}=-1, \qquad \lVert K\rVert_F^2=20. \]
The first raw ledger two, minus one, one, two has unweighted square ten but matrix-weighted square fifteen because the upper real and imaginary pair is counted twice. A second ledger one, three, minus two, one has weighted square twenty. Their diagonal inner contribution is minus one, their upper contribution is zero even after doubling, and their total real Frobenius inner product is minus one.
FigureFinding: conjugate reflection changes geometry even though it adds no new freedom. For \(q=(2,-1,1,2)\), the ordinary raw-ledger square is 10 while the assembled Frobenius square is 15. For \(r=(1,3,-2,1)\), the Frobenius square is 20. Their diagonal cross contribution is -1; the upper real-imaginary dot product is zero, so doubling it still contributes zero and the total inner product is -1. This is exact finite arithmetic, not empirical evidence.

There are two equivalent ways to remember the factor of two:

  1. keep the raw upper real and imaginary parts \((a,b)\) and use the weighted inner product above; or
  2. replace them by \((\sqrt2a,\sqrt2b)\), after which the ordinary Euclidean dot product has the right size.

For the running example, the second convention stores \((2,-1,\sqrt2,2\sqrt2)\), whose ordinary squared length is \(4+1+2+8=15\). The RMT-05 module in this chapter does not formalize this inner-product structure or the normalized-coordinate equivalence. Those are later checked layers explained in normalized Hermitian coordinates and Hermitian Frobenius geometry . The present module supplies the unscaled assembly map on which that geometry is built.

Camp five: Hermiticity is a three-case proof

Mathlib defines Matrix.IsHermitian H by \(H^*=H\). Its entrywise criterion asks for

\[ \overline{H_{ji}}=H_{ij} \qquad\text{for every }i,j. \]

Fix indices \(i\) and \(j\). A finite linear order gives exactly three cases.

Case one: \(i\lt j\)

The forward entry is strict upper and the reflected entry is lower:

\[ H_{ij}=u_{ij}, \qquad H_{ji}=\overline{u_{ij}}. \]

Therefore

\[ \overline{H_{ji}} =\overline{\overline{u_{ij}}} =u_{ij} =H_{ij}. \]

Case two: \(i=j\)

The diagonal entry is the complex coercion of a real number:

\[ H_{ii}=d_i. \]

Real numbers are fixed by complex conjugation, so

\[ \overline{H_{ii}}=\overline{d_i}=d_i=H_{ii}. \]

This is why the diagonal input type is \(\mathbb R\), not \(\mathbb C\). A putative diagonal value \(2+i\) would become \(2-i\) under conjugation and would fail the diagonal equation. The type rules out that near-miss before a proof starts.

Case three: \(j\lt i\)

This is the reflected version of case one:

\[ H_{ij}=\overline{u_{ji}}, \qquad H_{ji}=u_{ji}. \]

Conjugating the second equation gives exactly the first.

The Lean theorem RandomMatrix.hermitianFromCoordinates_isHermitian follows this architecture. It rewrites Hermiticity to the entrywise criterion, splits with lt_trichotomy i j, and applies the three entry simplification theorems. There is no probability space and no almost-everywhere qualifier. The result holds for every coordinate input.

In Lean: assembly is Hermitian for every input

One idea, three languages Read across, then read the syntax map
A human says
Every real diagonal and complex strict-upper family assembles to a Hermitian matrix, with no exceptional coordinate points.
On paper
\(\forall d\,u,\;\operatorname{assemble}(d,u)^*=\operatorname{assemble}(d,u)\).
In Lean
(RandomMatrix.hermitianFromCoordinates d u).IsHermitian
Syntax map
  • The parentheses first build the matrix from d and u.
  • .IsHermitian is Mathlib’s predicate that the conjugate transpose equals the original matrix.
  • The exact theorem RandomMatrix.hermitianFromCoordinates_isHermitian d u produces a proof of this proposition.
  • No symbol for a measure, an outcome, or “almost every” occurs. The claim is pointwise in the coordinate input.
  • In the proof source, lt_trichotomy i j creates the upper, diagonal, and lower cases used in the hand argument.

Physics window: reality and conjugate couplings

Hermiticity is the finite-dimensional algebra behind two central physics facts. Let \(\psi\in\mathbb C^n\) be a column vector and let \(\psi^\dagger\) be its conjugate transpose. The quadratic form of a Hermitian matrix is real:

\[ \begin{aligned} \overline{\psi^\dagger H\psi} &=\psi^\dagger H^*\psi\\ &=\psi^\dagger H\psi. \end{aligned} \]

In quantum mechanics, when \(H\) is a Hamiltonian, this reality is the algebraic prerequisite for real expectation values. The paired entries \(H_{ij}\) and \(H_{ji}=\overline{H_{ij}}\) are conjugate coupling matrix elements between the two basis directions. They are not themselves transition amplitudes or probabilities, and the relationship does not say that matrix coordinates are statistically independent.

Hermiticity also turns \(-iH\) into a skew-Hermitian generator:

\[ (-iH)^*=iH^*=iH=-(-iH). \]

Consequently, in finite dimensions and in units where \(\hbar=1\), the exponential \(U(t)=\exp(-itH)\) is unitary, which preserves inner products during Schrödinger evolution. This paragraph is mathematical and physical context. The present Lean module formalizes neither state vectors, quadratic forms, matrix exponentials, spectra, quantum measurement, nor time evolution. It checks only deterministic coordinate assembly, Hermiticity, and measurability.

Camp six: measurability reduces to scalar coordinates

Let the coordinate data vary with an outcome \(\omega\) in a measurable space \(\Omega\):

\[ d:\Omega\to(\operatorname{Fin}(n)\to\mathbb R), \qquad u:\Omega\to(I_n^{\lt}\to\mathbb C). \]

For each fixed diagonal index \(i\), assume \(\omega\mapsto d(\omega)_i\) is measurable. For each fixed strict-upper index \(q\), assume \(\omega\mapsto u(\omega)_q\) is measurable. The assembled sample map is

\[ \omega\longmapsto \operatorname{assemble}\bigl(d(\omega),u(\omega)\bigr). \]

The project’s matrix measurable space is entrywise: a matrix-valued function is measurable exactly when every fixed entry is measurable. Fix \(i,j\) and reuse the order branches.

  • If \(i\lt j\), the output entry is the assumed measurable map \(\omega\mapsto u(\omega)_{ij}\).
  • If \(j\lt i\), the output is the conjugate of \(\omega\mapsto u(\omega)_{ji}\). Complex conjugation is continuous and therefore measurable.
  • Otherwise the output is the assumed measurable real diagonal map, followed by the continuous inclusion \(\mathbb R\to\mathbb C\).

This is RandomMatrix.measurable_hermitianFromCoordinates. Its hypotheses are ordinary coordinatewise Measurable statements. It needs no measure on \(\Omega\), and it infers no laws, moments, or independence.

The canonical coordinate map

Package the two coordinate functions as one point \(x=(d,u)\) of the Hermitian coordinate space . The project defines

def hermitianCoordinateMap (n : ℕ) :
    HermitianCoordinateSpace n → Matrix (Fin n) (Fin n) ℂ :=
  fun x ↦ hermitianFromCoordinates x.1 x.2

The theorem measurable_hermitianCoordinateMap n proves this map measurable. Coordinate evaluation on each function-space factor is measurable; composition with the product projections supplies the hypotheses of the general assembly theorem.

This named map is the eventual transport bridge. A later module may place a probability measure on the coordinate space and push it forward through hermitianCoordinateMap. RMT-05 does not perform that pushforward or choose a source measure.

In Lean: coordinatewise measurability lifts through assembly

One idea, three languages Read across, then read the syntax map
A human says
If every diagonal coordinate process and every strict-upper coordinate process is measurable, then the assembled matrix-valued process is measurable.
On paper
\(\bigl[\forall i,\ d_i\text{ measurable}\bigr]\land\bigl[\forall q,\ u_q\text{ measurable}\bigr]\Longrightarrow\bigl[\omega\mapsto\operatorname{assemble}(d(\omega),u(\omega))\text{ measurable}\bigr].\)
In Lean
Measurable fun ω ↦ RandomMatrix.hermitianFromCoordinates (d ω) (u ω)
Syntax map
  • fun ω ↦ … is an anonymous function of the outcome ω.
  • d ω and u ω are the two coordinate families at that outcome.
  • Measurable is a predicate on the whole matrix-valued function.
  • The theorem RandomMatrix.measurable_hermitianFromCoordinates hd hu proves the displayed proposition from coordinatewise hypotheses hd and hu.
  • A measurable space tells Lean which preimages are legitimate events. No measure, probability mass, density, or expectation is introduced here.

Camp seven: bundle the sample map without adding a law

The existing HermitianRandomMatrix structure packages a matrix sample map with two proofs:

  1. the sample map is measurable; and
  2. every realized matrix is Hermitian.

The constructor HermitianRandomMatrix.ofCoordinates takes the coordinate processes \(d\) and \(u\), together with their coordinatewise measurability proofs. Its underlying matrix is direct assembly. The measurability field is filled by measurable_hermitianFromCoordinates, and the pointwise symmetry field is filled by hermitianFromCoordinates_isHermitian.

The theorem HermitianRandomMatrix.ofCoordinates_apply exposes the bundle at an outcome:

\[ \operatorname{ofCoordinates}(d,u)(\omega) =\operatorname{assemble}\bigl(d(\omega),u(\omega)\bigr). \]

The word random in the carrier name does not add a probability measure. The bundle is a measurable Hermitian sample map on a measurable outcome space. Its law becomes meaningful only after a measure is supplied separately.

The separation keeps the constructor reusable. The same assembly works for Gaussian coordinates, bounded coordinates, empirical inputs, or fully deterministic functions. Hermiticity and measurability do not depend on which later probability model is chosen.

Camp eight: dimension zero is not an exception

When \(n=0\), Fin 0 has no values. Consequently:

  • the diagonal index type is empty;
  • StrictUpperIndex 0 is empty;
  • there is exactly one diagonal function from Fin 0 to \(\mathbb R\);
  • there is exactly one strict-upper function into \(\mathbb C\); and
  • a matrix indexed by Fin 0 in both directions has no entries.

Two functions with an empty domain are equal because there is no input on which they can differ. The coordinate product therefore contains one point. The matrix space also contains one matrix, represented by the zero matrix.

The theorem hermitianFromCoordinates_zero proves that every zero-dimensional input assembles to this unique zero matrix. The theorem hermitianCoordinateMap_zero states the same fact for the named coordinate map.

The proofs do not divide by \(n\), appeal to a density, or special-case a random law. They eliminate the impossible row index. This settles the deterministic boundary. A later dimension-dependent ensemble still needs its own explicit \(n=0\) probability policy.

Type the running example yourself with Lean and Std

The project theorem uses Mathlib’s complex numbers, matrices, measurable spaces, and Hermitian predicate. Before loading that machinery, a learner can model the same finite bookkeeping with two small structures. The worksheet below imports only Lean’s Std library. It is intentionally bounded and suitable for an ordinary macOS or Linux machine.

Create a scratch directory outside formalization/. Save the exact block below as HermitianCoordinatesTutorial.lean:

import Std

namespace HermitianCoordinatesTutorial

structure ComplexInt where
  re : Int
  im : Int
  deriving Repr, DecidableEq

def ComplexInt.conj (z : ComplexInt) : ComplexInt :=
  { re := z.re, im := -z.im }

structure Hermitian2Coordinates where
  d0 : Int
  d1 : Int
  upper : ComplexInt
  deriving Repr, DecidableEq

structure Matrix2 where
  a00 : ComplexInt
  a01 : ComplexInt
  a10 : ComplexInt
  a11 : ComplexInt
  deriving Repr, DecidableEq

def Matrix2.IsHermitian (A : Matrix2) : Prop :=
  A.a00.im = 0 ∧
  A.a11.im = 0 ∧
  A.a10 = A.a01.conj

instance (A : Matrix2) : Decidable (Matrix2.IsHermitian A) := by
  unfold Matrix2.IsHermitian
  infer_instance

def assemble (x : Hermitian2Coordinates) : Matrix2 :=
  { a00 := { re := x.d0, im := 0 }
    a01 := x.upper
    a10 := x.upper.conj
    a11 := { re := x.d1, im := 0 } }

def extract (A : Matrix2) : Hermitian2Coordinates :=
  { d0 := A.a00.re
    d1 := A.a11.re
    upper := A.a01 }

def rawLedgerSq (x : Hermitian2Coordinates) : Int :=
  x.d0 * x.d0 + x.d1 * x.d1 +
    x.upper.re * x.upper.re + x.upper.im * x.upper.im

def frobeniusSq (x : Hermitian2Coordinates) : Int :=
  x.d0 * x.d0 + x.d1 * x.d1 +
    2 * (x.upper.re * x.upper.re + x.upper.im * x.upper.im)

def frobeniusInner
    (x y : Hermitian2Coordinates) : Int :=
  x.d0 * y.d0 + x.d1 * y.d1 +
    2 * (x.upper.re * y.upper.re + x.upper.im * y.upper.im)

def q : Hermitian2Coordinates :=
  { d0 := 2
    d1 := -1
    upper := { re := 1, im := 2 } }

def r : Hermitian2Coordinates :=
  { d0 := 1
    d1 := 3
    upper := { re := -2, im := 1 } }

def nearMiss : Matrix2 :=
  { a00 := { re := 2, im := 0 }
    a01 := { re := 1, im := 2 }
    a10 := { re := 1, im := 2 }
    a11 := { re := -1, im := 0 } }

#eval [decide (extract (assemble q) = q),
  decide (Matrix2.IsHermitian (assemble q)),
  decide (Matrix2.IsHermitian nearMiss)]

#eval [rawLedgerSq q, frobeniusSq q,
  frobeniusInner q r, frobeniusSq r]

example : extract (assemble q) = q := by decide
example : Matrix2.IsHermitian (assemble q) := by decide
example : ¬ Matrix2.IsHermitian nearMiss := by decide
example : rawLedgerSq q = 10 := by decide
example : frobeniusSq q = 15 := by decide
example : frobeniusInner q r = -1 := by decide
example : frobeniusSq r = 20 := by decide

end HermitianCoordinatesTutorial

Open a terminal in that scratch directory and type:

source "$HOME/.elan/env"
elan run leanprover/lean4:v4.32.0 lean HermitianCoordinatesTutorial.lean

This exact worksheet was executed successfully with Lean 4.32.0 while editing this chapter. Its output was

[true, true, false]
[10, 15, -1, 20]

Read the first line as: extraction reconstructs \(q\); assembled \(q\) is Hermitian; the copied-without-conjugating near-miss is not. Read the second as the raw ledger square, \(H\)’s Frobenius square, the real Frobenius inner product of \(H\) with \(K\), and \(K\)’s Frobenius square. Each example is a kernel-checked proof of the corresponding equality.

This miniature uses integer real-imaginary pairs, not Mathlib’s ℂ or Matrix. It does not prove the general dimension count, measurable assembly, or the project theorem. Most importantly, the command loads only the pinned Lean compiler and Std; it does not run Lake, import Mathlib, or compile this project.

The checked declaration map

The module NonlinearDynamics.Random.RandomMatrices.HermitianCoordinates exports 17 public declarations. The table separates checked content from interpretations that the declaration does not add.

DeclarationChecked contentDoes not add
StrictUpperIndexFinite pairs whose row is less than their columnA cardinality formula or random coordinates
StrictUpperIndex.instFintypeFiniteness of the strict-upper index typeAn ordering of random variables
StrictUpperIndex.instDecidableEqDecidable equality of strict-upper indicesIndependence or identical distributions
StrictUpperIndex.instIsEmptyZeroNo strict-upper index exists at size zeroA matrix law
HermitianCoordinateSpaceReal diagonal paired with complex strict upper triangleProof fields, a measure, or a scale
RandomMatrix.hermitianFromCoordinatesDirect three-branch matrix assemblyGaussianity or normalization
RandomMatrix.hermitianFromCoordinates_apply_diagDiagonal entry is the supplied real coordinateA diagonal distribution
RandomMatrix.hermitianFromCoordinates_apply_upperUpper entry is the supplied complex coordinateAn upper-coordinate distribution
RandomMatrix.hermitianFromCoordinates_apply_lowerLower entry is the conjugate of the reflected upper coordinateA free lower coordinate
RandomMatrix.hermitianFromCoordinates_isHermitianEvery assembled matrix is HermitianUnitary invariance of a law
RandomMatrix.measurable_hermitianFromCoordinatesCoordinatewise measurable processes assemble measurablyA probability measure or almost-everywhere repair
RandomMatrix.hermitianCoordinateMapNamed map from coordinate space to matricesAn inverse or linear equivalence
RandomMatrix.measurable_hermitianCoordinateMapThe named map is measurableMeasure preservation
RandomMatrix.hermitianFromCoordinates_zeroZero-dimensional assembly is the zero matrixA zero-dimensional ensemble law
RandomMatrix.hermitianCoordinateMap_zeroThe named zero-dimensional map is constantly zeroA Dirac-law theorem
HermitianRandomMatrix.ofCoordinatesBundled measurable pointwise-Hermitian sample mapA base probability measure
HermitianRandomMatrix.ofCoordinates_applyBundle evaluation reduces to direct assemblyAny law or moment statement

The repository’s recorded project validation compiled all 17 declarations under Lean 4.32.0 and the pinned Mathlib 4.32.0 dependency. The module contains no sorry or admit. The full project command below is the exact route for a fresh replay.

Inspect and check the exact project interfaces

Try it in the repository NonlinearDynamics/Random/RandomMatrices/HermitianCoordinates.lean

The authoritative source is formalization/NonlinearDynamics/Random/RandomMatrices/HermitianCoordinates.lean. After installing the repository’s pinned dependencies, put these exact lines in a temporary project scratch file:

import NonlinearDynamics.Random.RandomMatrices.HermitianCoordinates

open Matrix MeasureTheory
open scoped Matrix
open NonlinearDynamics.Random

#check StrictUpperIndex
#check HermitianCoordinateSpace
#print RandomMatrix.hermitianFromCoordinates
#check RandomMatrix.hermitianFromCoordinates_apply_diag
#check RandomMatrix.hermitianFromCoordinates_apply_upper
#check RandomMatrix.hermitianFromCoordinates_apply_lower
#check RandomMatrix.hermitianFromCoordinates_isHermitian
#check RandomMatrix.measurable_hermitianFromCoordinates
#check RandomMatrix.hermitianCoordinateMap
#check RandomMatrix.measurable_hermitianCoordinateMap
#check RandomMatrix.hermitianFromCoordinates_zero
#check RandomMatrix.hermitianCoordinateMap_zero
#check HermitianRandomMatrix.ofCoordinates
#check HermitianRandomMatrix.ofCoordinates_apply

import loads the exact project module and its pinned Mathlib dependencies. #print shows the constructor body, while each #check elaborates an existing declaration and reports its type. These commands neither sample a random matrix nor establish any probability law. The full project command below checks the authoritative source file.

Full project check, from the repository root
cd formalization
lake env lean -DwarningAsError=true NonlinearDynamics/Random/RandomMatrices/HermitianCoordinates.lean

Resource note: this exact file uses the repository's pinned Lean and Mathlib dependencies. Initial project setup can require substantial disk space and build time. For a lightweight first step on macOS or Linux, use the page's standalone Lean-core or Std tutorial.

Checked Lean and mathematical context are different layers

The \(n^2\) count suggests a bijection between \(\mathcal C_n\) and the real vector space of Hermitian matrices. Read a Hermitian matrix’s real diagonal and strict upper triangle, then assemble them back. Conversely, assemble coordinates and extract those same positions.

That paper argument is useful context, but RMT-05 does not package it as a Lean inverse, equivalence, real-linear equivalence, topology theorem, or dimension theorem. The forward measurable map is the smallest interface needed by the next probability milestone. If later proofs need Jacobians, densities, or an intrinsic Euclidean structure, the inverse and linear geometry should become explicit declarations rather than being assumed from the count.

Likewise, measurability means that a source measure can be transported through the assembly map. It does not identify the source measure, prove a pushforward identity in this module, or establish invariance under unitary conjugation.

LayerAvailable nowStill separate
Algebraic coordinatesStrict-upper type, coordinate product, entry insertionExtractor, inverse, real-linear equivalence
Coordinate geometryExact paper calculation for the running two-by-two ledgersRMT-05 has no norm, inner-product, isometry, or dimension declaration
SymmetryPointwise Hermiticity for every inputSpectral applications in this module
MeasurabilityCoordinatewise assembly and canonical mapA base measure or probability law
BoundaryUnique zero-dimensional output is zeroA zero-dimensional ensemble policy
ProbabilityNo claimCoordinate laws, independence, pushforward law
Ensemble symmetryNo claimNontrivial unitary invariance

The ridge toward a finite Gaussian matrix law

At the RMT-05 boundary, the deterministic map made a later probability construction possible without making it automatic. That law-level module still needed to:

  1. choose real random coordinates for the diagonal;
  2. choose complex random coordinates for the strict upper triangle;
  3. state their complete joint law and dependence structure;
  4. select the diagonal variance and both real component variances of every complex upper coordinate;
  5. state every dimension-dependent scale and the \(n=0\) policy;
  6. define the coordinate probability measure;
  7. push that measure through the measurable assembly map;
  8. prove that the resulting law has Hermitian support; and
  9. separately prove any nontrivial unitary-invariance or moment theorem.

The existing independent Cartesian complex Gaussian family can eventually supply the upper-coordinate side of such a ledger. It does not supply the real diagonal family or decide the matrix normalization. The normalization convention entry tracks the choices that remain open.

The lower triangle will never be an independent primitive family in this route. Its entries are deterministic functions of upper coordinates. This does not prevent the full matrix from having a rich law; it identifies the correct primitive building blocks before assembly.

RMT-06 has now completed items 1 through 7 with a Wigner-scale coordinate product law and an explicit zero branch. Measure-level Hermitian support, unitary invariance, and moments remain separate. Continue to Finite GUE from Independent Gaussian Coordinates for the completed probability bridge.

Common wrong turns

Treating every matrix slot as a primitive coordinate

This conflicts with Hermitian reflection unless lower entries are identified with conjugates of upper entries. Use the strict upper triangle as the primitive complex index type.

Letting diagonal coordinates be arbitrary complex numbers

Hermitian diagonals must be real. A real-valued input type enforces this before the proof begins.

Using \(X+X^*\) without tracking the diagonal

Universal symmetrization doubles a real diagonal. It is not a transparent insertion of already named coordinates.

Giving the raw ledger the ordinary Euclidean dot product

The raw upper real and imaginary coordinates each appear in two matrix cells. Without a factor of two in the coordinate metric, the running ledger has squared length 10 while its assembled matrix has Frobenius square 15. Use the weighted metric, or rescale upper coordinates by \(\sqrt2\), and state which convention is active.

Calling measurability a probability law

A measurable function has well-formed preimages. It has no distribution until a measure on its domain is supplied.

Calling the primitive coordinates independent

RMT-05 contains no independence assumption or theorem. It works for arbitrary coordinate functions, including deterministically dependent ones.

Inferring a GUE law from Hermiticity

Hermiticity is an algebraic support constraint. It fixes neither a Gaussian law nor a dimension scale nor invariance under unitary conjugation.

Ignoring \(n=0\) until a reciprocal appears

The deterministic coordinate map is well-defined at size zero. A later model that uses \(1/n\) or \(1/\sqrt n\) must state its own boundary policy.

Assuming the dimension count is already formalized

The count is correct mathematical context, but the module has no named cardinality or dimension theorem. Cite the checked forward map for checked claims and label the count as context.

Exercises

  1. Count. Derive the real-coordinate count for \(n=4\), then compare it with \(n^2\).
  2. Assemble. Write the matrix produced from a real diagonal \((a,b)\) and one complex strict-upper coordinate \(x+iy\).
  3. Reflect. Verify the entrywise Hermitian equation for \(j\lt i\) without citing the upper case.
  4. Geometry. Recompute \(\lVert H\rVert_F^2=15\) directly from the four matrix entries, then recover the same answer from the weighted ledger.
  5. Cross term. Expand \(\operatorname{Re}\sum_{i,j}\overline{H_{ij}}K_{ij}\) and verify that the two off-diagonal contributions have real part zero.
  6. Diagnose. Build the upper-triangular temporary matrix for the worked example and compute the diagonal of \(X+X^*\).
  7. Measure. Explain why conjugating a measurable complex coordinate preserves measurability but need not leave its law unchanged.
  8. Boundary. Prove that any two matrices indexed by Fin 0 are equal.
  9. Lean. Change nearMiss.a10.im from 2 to -2 in the standalone worksheet and predict which output changes before rerunning it.
  10. Project Lean. Locate the branch in measurable_hermitianFromCoordinates where conjugation is used.
  11. Design. State the type of an inverse that extracts coordinates from a Hermitian matrix subtype.
  12. Scope. Separate the hypotheses for a pushforward probability law from those needed for unitary invariance.

Summit register

The checked module provides a finite strict-upper index type, a normalization-free coordinate space, direct assembly, exact entry formulas, pointwise Hermiticity, coordinatewise and canonical measurability, an explicit zero-dimensional result, and a bundled measurable Hermitian sample map.

The mathematical count explains \(n^2\) real degrees of freedom, and the running example explains the weighted norm and inner product. Neither is a named theorem in this RMT-05 module. The standalone Std worksheet checks only its finite integer model. The project module does not define an inverse, dimension theorem, Frobenius isometry, probability measure, coordinate law, independence, Gaussian ensemble, density, normalization, unitary invariance, eigenvalue map, trace expectation, or asymptotic result.

That boundary is the achievement. A later probability module can now make every distributional choice visibly rather than hiding one in matrix bookkeeping.

Where to continue

Use the Hermitian coordinate space entry for the compact definition, degree count, and boundary checklist. Random Matrices: From Outcomes to Spectra develops the surrounding sample-map, Hermiticity, law, and observable layers.

Finite Product Probability Spaces and Independent Gaussian Fields provides exact finite product laws for independent complex coordinates. Gaussian Laws, Independence, and Normalization and Complex Gaussian Coordinates and Geometry explain scalar laws and visible variance ledgers a later ensemble may use.

Read probability law and pushforward measure before transporting a coordinate measure. Read unitary invariance for the separate law-level symmetry claim that direct assembly does not prove.

The next checked layer is Finite GUE from Independent Gaussian Coordinates, which supplies the Wigner ledger, canonical product measure, exact independence architecture, and matrix pushforward.

References

Lean contributors. Subtypes, The Lean Language Reference. This official reference explains the value-plus-proof packaging used by StrictUpperIndex and the notation {x : α // p x}.

Mathlib contributors. Hermitian matrices, Mathlib 4 documentation. This official API defines Matrix.IsHermitian and its entrywise criterion.

Mathlib contributors. Measurable spaces and measurable functions, Mathlib 4 documentation. This is the official foundation for measurable spaces, measurable maps, and composition.

Mathlib contributors. Finite index types, Mathlib 4 documentation. This documents Fin n and the empty Fin 0 type used in the boundary proofs.

John von Neumann. Mathematical Foundations of Quantum Mechanics, Princeton University Press, English translation first published in 1955. This foundational source supplies the broader operator-theoretic physics context for Hermitian observables and unitary evolution. The present Lean module does not formalize that quantum-mechanical layer.

Terence Tao. Topics in Random Matrix Theory, Graduate Studies in Mathematics 132, American Mathematical Society, 2012. This monograph supplies broader context, not an unproved law for this module.

Greg W. Anderson, Alice Guionnet, and Ofer Zeitouni. An Introduction to Random Matrices, Cambridge Studies in Advanced Mathematics 118, Cambridge University Press, 2010. This monograph provides systematic context for Hermitian coordinate models and Gaussian ensembles. The present chapter stops before those probability choices.

The exact upstream Lean source audited for this chapter is Mathlib commit 81a5d257, the revision pinned by formalization/lake-manifest.json.
